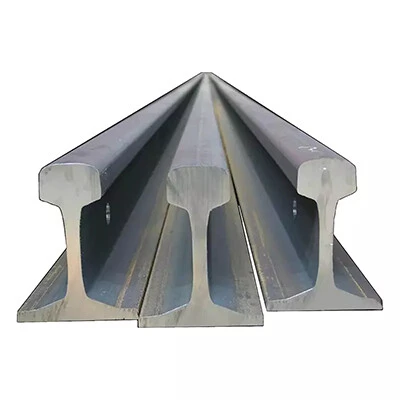

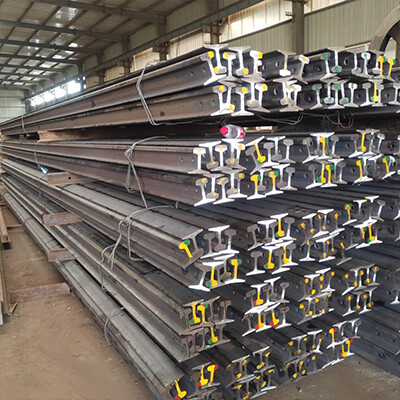

115RE Rail Specification

Size	Head (mm)	Height (mm)	Base (mm)	Web (mm)	Nominal weight (kg/m)	Material	Length （m）
115RE(115lb)	69.06	168.28	139.7	15.88	56.9	900A/1100	12-25

Rail area (SQ. IN.) Head Web Base Whole rail	3.8861 3.0362 4.2947 11.2171
Rail weight (lbs/yd)	114.3757
Moment of inertia about the neutral axis	65.5
Section modulus of the head Section modulus of the base	18.0 21.9
Height of neutral axis above base	2.99
Lateral moment of inertia	10.7
Lateral section modulus of the head Lateral section modulus of the base	7.88 3.89
