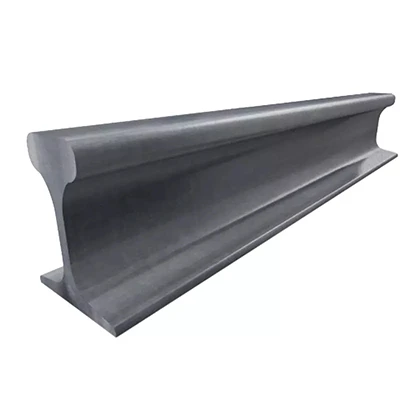

136 RE Rail Specification

Rail type	Head mm	Height mm	Base mm	Web mm	Weight Kg/m	material	length
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100	12-25

Joint bars for 136RE rail are available. Common length: 36 inches (6 holes), 24 inches (4 holes).

Rail Type:	136 LB RAIL(TR68)
Nominal Weight(lbs/yd)	136
Standard Length	39′, 80′
Standard Drilling:	3-1/2”×6” or 3-1/2”×6”×6” with 1-1/4” dia. holes
Rail Joint Length:	24” or 36”
Rail Joint Weight:	4-hole joint: 70 lbs/pr with hardware: 79 lbs/pr 6-hole joint: 117 lbs/pr with hardware: 130 lbs/pr
Rail Bolt:	1”×6”
