DETAILS

90lbs Rail Dimensions

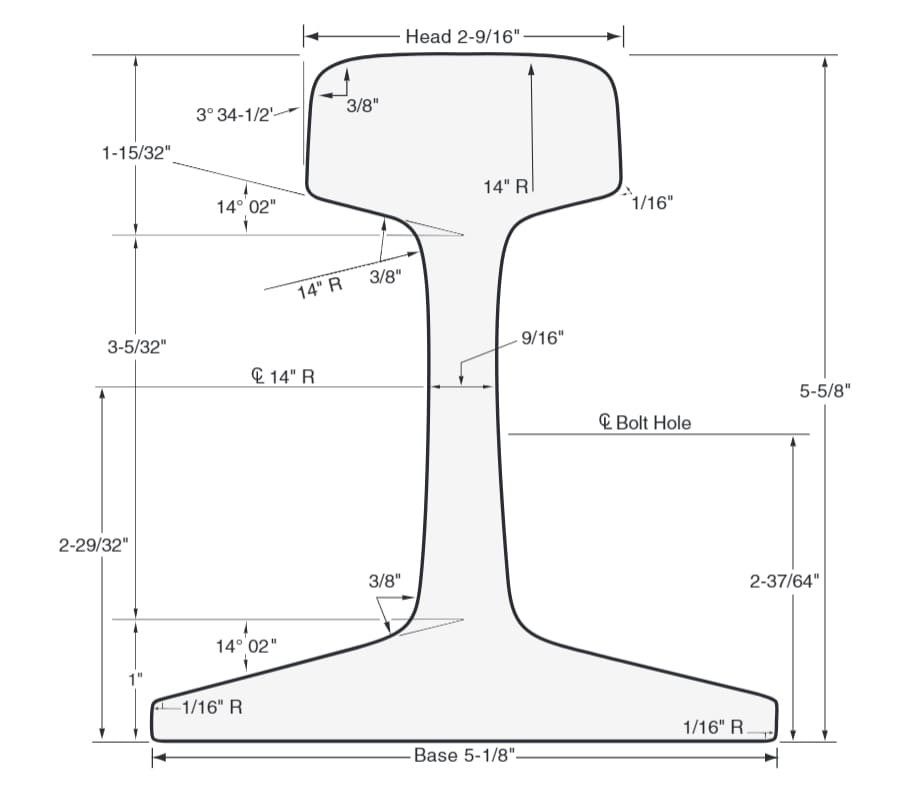

90 lbs rail section profile
90 lbs rail dimension inch
Rail TypeHight width (mm)Base width (mm)Head width (mm)Web thickness (mm)Weight Kg/mMaterial
90 ARA-A142.88130.1865.0914.2944.65900A/1100
90 lbs rail dimension mm
Rail Type90 RA
Section Number9020
Nominal Weight90 lbs/yd (44.65kg/m)
Standard Length39’
Area in28.82
Section Modulus in3Head: 12.6 Base: 15.2
Moment of Inertia in438.7
