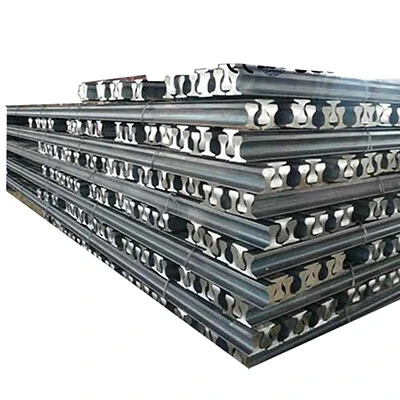

Rail

DETAILS

DIN536 Specifications

Size	Head (mm)	Height (mm)	Base (mm)	Web (mm)	Nominal weight (kg/m)	Material	Length （m）
A45	45	55	125	24	22.1	700/900A/1100	10-12
A55	55	65	150	31	31.8	700/900A/1100	10-12
A65	65	75	175	38	43.1	700/900A/1100	10-12
A75	75	85	200	45	56.2	700/900A/1100	10-12
A100	100	95	200	60	74.3	700/900A/1100	10-12
A120	120	105	220	72	100	700/900A/1100	10-12
A150	150	150	220	80	150.3	700/900A/1100	10-12

DIN536 Chemical Composition Analysis

Grade	Standard	C	Si	Mn	P	S	V
690	DIN536-1 Min	0.40	–	0.80	–	–	–
	Max	0.60	0.35	1.20	0.045	0.045	–
880	DIN536-1 Min	0.60	–	0.80	–	–	–
	Max	0.80	0.50	1.30	0.045	0.045	–

The Strength Requirements

Grade	Minimum yield(Mpa)	Minimum UTS(Mpa)	Hardness(HBN)
690	355	690	204
880	440	880	260
