Name: Plastic-Coated Steel Pipe
SKU: 0

Zhuosheng Steel

manager@zhssteel.com

0086 13026578856

Carbon steel pipe

API 5CT J55/K55/N80/L80-1/L80-9Cr/L80-13Cr/P110/Q125/K55 D10/L80 D10

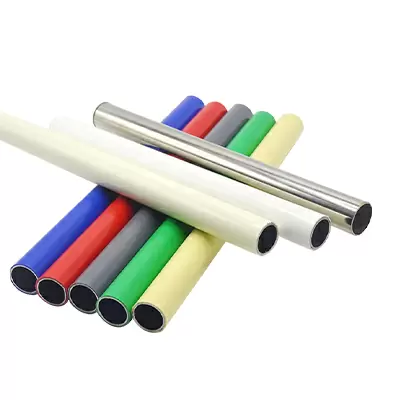

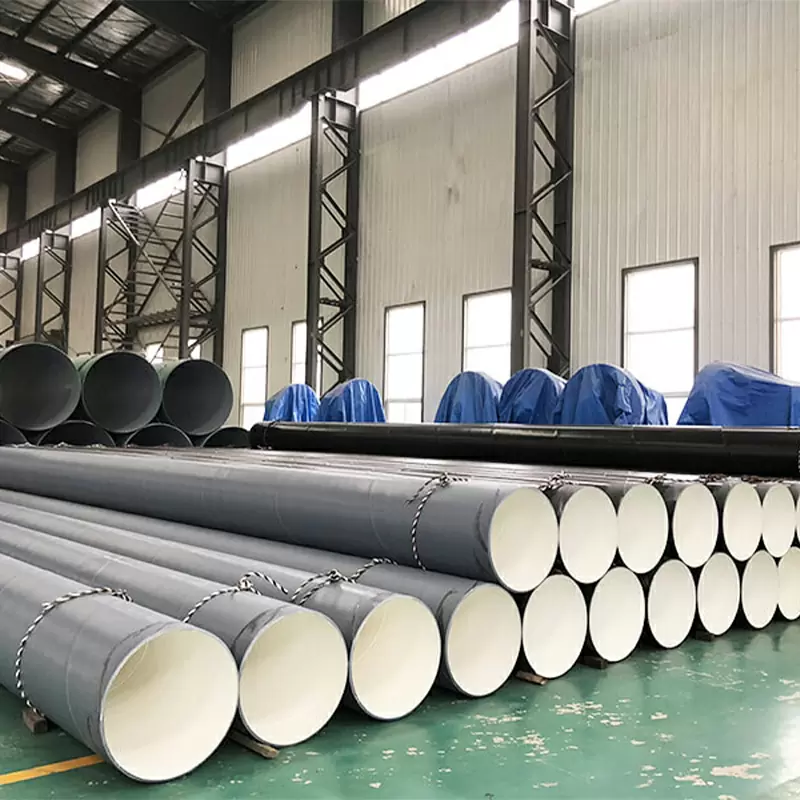

Plastic-Coated Steel Pipe

TEL：0086 13026578856

WhatsApp：0086 13026578856

manager@zhssteel.com

DETAILS

Grades:

API 5CT J55/K55/N80/L80-1/L80-9Cr/L80-13Cr/P110/Q125/K55 D10/L80 D10

Sizes:

Diameter :from 4 1/2 inch to 20 inch （48.26mm - 508mm)

Nominal Weight: from 9.5 lb/ft to 169 lb/ft

from 9.5 ppf to 169 ppf

Length: R1, R2, R3

Types:

Seamless casing

ERW casing

Coating

FBE Coating

Epoxy Coating

Applications:

oil well extracting casing
borehole casing
borewell casing

Dimension Tolerance of casing pipe

Types of steel tubes	Outer Diameter		Wall Thickness
Cold-rolled tubes	Tube sizes(mm)	Tolerances(mm)	Tolerances(mm)
	＜114.3	±0.79	－12.5％
	≥114.3	－0.5％，＋1％	－12.5％

Chemical Composition of casing pipe

Standard	Grade	Chemical compositions（％）
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34～0.39	0.20～0.35	1.25～1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34～0.38	0.20～0.35	1.45～1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11～0.16
	L80	0.15～0.22	≤1.00	0.25～1.00	≤0.020	≤0.010	12.0～14.0	≤0.20	≤0.20	/	/
	P110	0.26～0.395	0.17～0.37	0.40～0.70	≤0.020	≤0.010	0.80～1.10	≤0.20	≤0.20	0.15～0.25	≤0.08

Mechanical properties of casing pipe

Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max(HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-

Oil casing is used to support the oil, gas wells of steel pipe, in order to ensure the drilling process and the completion of the entire well after the normal operation. Each well has several layers of casing depending on the drilling depth and geology. Casing down to use cement cementing, it and the tubing, drill pipe is different, can not be reused, a one-time consumption of materials. Therefore, the casing of the total consumption of more than 70% of the wells. Casing according to the use can be divided into: catheter, surface casing, casing technology and oil casing.
